The Low-Resistance Alternative to Tees
In high-speed automation and sensitive pneumatic circuits, turbulence is the enemy. Standard “Tee” fittings force air to make a hard 90° turn, causing restriction. Victory Technology’s Y Push-In Fittings solve this with a fluid Y-geometry that splits the flow gently. This results in balanced distribution, faster cylinder actuation, and reduced energy loss.
Explore Our Y-Fitting Configurations:

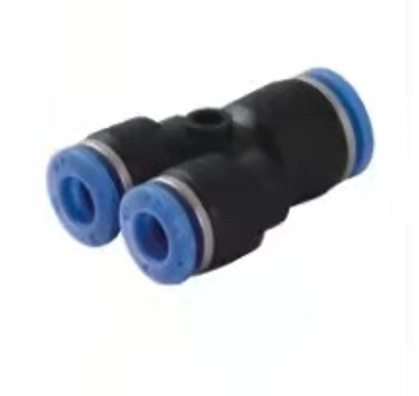

1️⃣ Union Y (APY Series)
-
Type: Tube-Tube-Tube (Equal Size).
-
Function: Splits one main air line into two equal branches.
-
Benefit: The most compact way to create a dual-circuit layout without manifolds. Ideal for pick-and-place robots and packaging machines.
2️⃣ Branch Y (APX Series)
-
Type: Tube-Tube-Thread (Male/Female).
-
Function: Screws directly into a port (valve or cylinder) and splits the output into two tubes immediately.
-
Use: Perfect for mounting sensors, gauges, or running dual actuators from a single valve port.
3️⃣ Reducer Y (APW Series)
-
Type: Large Tube Input → 2x Small Tube Outputs.
-
Function: A “Y” splitter that also acts as a reducer (e.g., 10mm in, 2x 8mm out).
-
Benefit: Saves space and fittings by combining splitting and reducing into one component.
Why Choose Victory Y-Fittings?
-
Improved Flow Dynamics: The angled design ensures smoother airflow compared to T-connectors.
-
Vibration Resistant: High-retention claws grip the tubing securely, making them reliable for truck and trailer auxiliary circuits.
-
Versatile: Compatible with PA12 (Nylon), PU, and PE tubing. Thread options include Metric, BSP, and NPT.
🧰 Technical Specifications (Series Overview)
| Feature | Specification |
| Product Series | APY (Union), APX (Branch), APW (Reducer) |
| Material | PBT Polymer (Black) / Nickel-Plated Brass |
| Tubing Size | Metric (4, 6, 8, 10, 12mm) & Imperial |
| Thread Options | Metric, NPT, BSPP, BSPT |
| Flow Characteristic | Low Resistance / High Flow |
| Working Pressure | 0 – 150 PSI (1.0 MPa) |
| Application | Flow Splitting, Automation, Trucks |
❓ Frequently Asked Questions (FAQ)
Q: When should I use a Y Fitting instead of a Tee?
A: Use a Y Fitting when you need to minimize pressure drop or when space is limited length-wise. The Y-shape allows for tighter routing in wire/tube bundles compared to the perpendicular T-shape.
Q: Can I use these for mixing fluids?
A: While primarily designed for splitting airflow, they can be used to merge two lines into one (mixing), provided the fluids are compatible with the PBT/Brass materials.
Q: Do you have these for Imperial tubing?
A: Yes, we offer the full APY/APX range in 1/4″, 3/8″, and 1/2″ sizes for the North American market.
📦 Factory Direct Packaging (B2B)
-
Bulk Bags: 50/100 pcs per bag (labeled with Series e.g., “APY-08 Union Y”).
-
Assortment Kits: Available as part of our pneumatic maintenance kits.
-
OEM Options: Custom button colors (Blue/Black) available.
