Fast, Secure, and Universal
Whether you are plumbing a pneumatic cylinder on a robotic arm or connecting air valves on a semi-trailer, the Straight Push-In Fitting is the go-to connector. Designed for efficiency, it allows tubes to be connected by simply pushing them in, while the threaded end secures the fitting to the equipment. Victory Technology offers a comprehensive range of straight fittings to suit every port size and tube diameter.
Explore Our Straight Fitting Types:

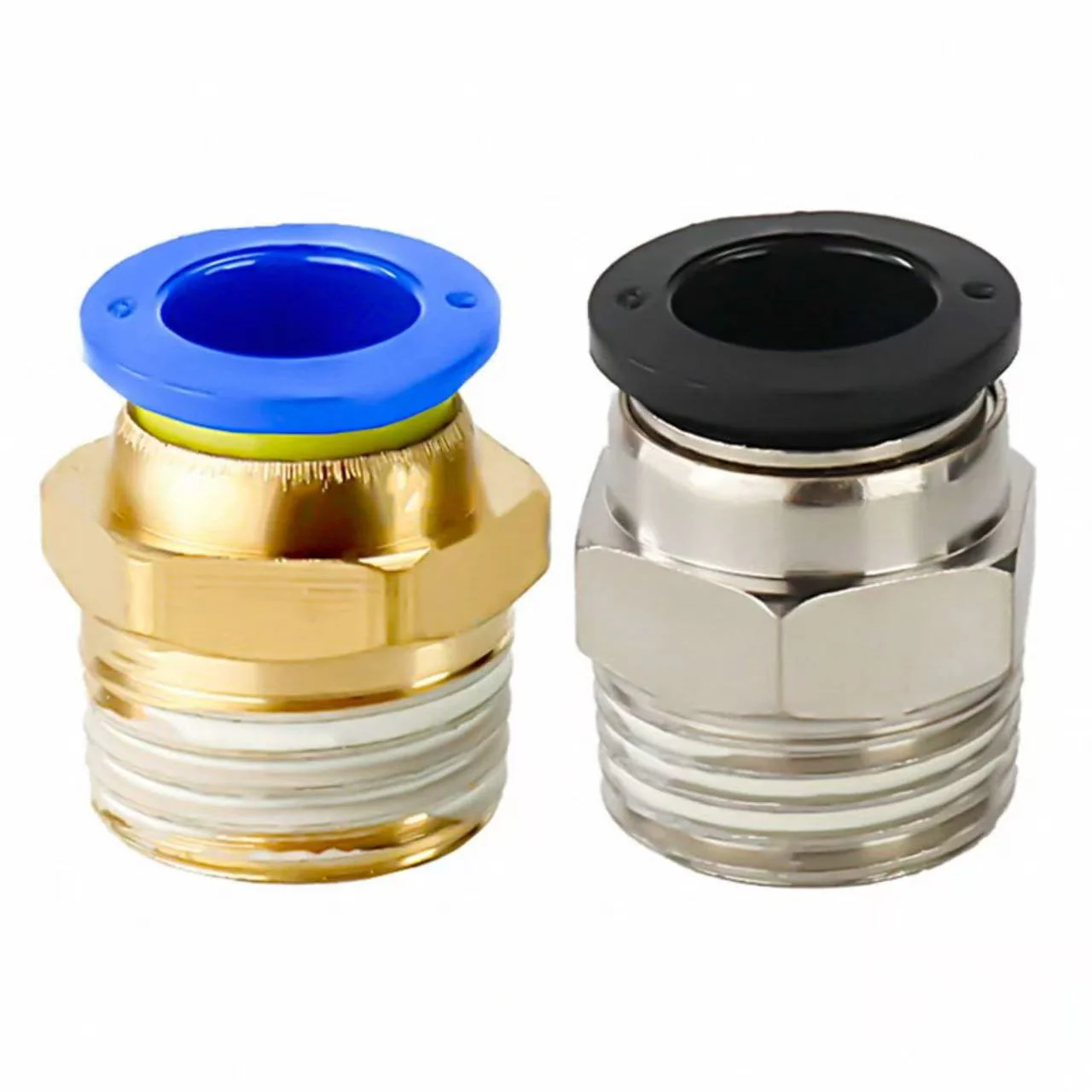

1️⃣ Male Straight (APC Series)
-
Type: Tube → Male Thread.
-
Function: The most common fitting. Connects a tube directly into a female port (e.g., on a cylinder or valve).
-
Hex Design: Internal and external hex options allow for tightening with an Allen key or wrench, even in tight spaces.
2️⃣ Female Straight (APCF Series)
-
Type: Tube → Female Thread.
-
Function: Connects a tube to a male-threaded pipe, gauge, or sensor.
-
Feature: Rugged hex body for secure wrench tightening.
3️⃣ Bulkhead Straight (APMF Series – Optional)
-
Type: Tube → Panel Mount → Thread/Tube.
-
Function: Used for passing lines securely through control panels or chassis walls.
Why Choose Victory Straight Fittings?
-
Wide Thread Selection: We manufacture hard-to-find Metric sizes (M5, M6, M8, M10, M12, M14, M16, M20) alongside standard BSP (G/R) and NPT options.
-
Tube Compatibility: Secure grip on 4mm – 16mm (Metric) and 1/4″ – 1/2″ (Imperial) tubing types including PA12, PU, and PE.
-
Leak-Free Sealing: Precision-machined threads with pre-applied sealant (on tapered threads) or captured O-rings (on parallel threads) ensure an airtight seal under high pressure.
🧰 Technical Specifications (Series Overview)
| Feature | Specification |
| Product Series | APC (Male), APCF (Female) |
| Connection Type | Straight (Tube-to-Thread) |
| Tubing Size | 4mm – 16mm (Metric) & Imperial |
| Metric Threads | M5, M6, M8, M10, M12, M14, M16, M20 |
| Standard Threads | NPT, BSPP (G), BSPT (R) |
| Material | Nickel-Plated Brass / PBT Polymer |
| Working Pressure | 0 – 1.0 MPa (150 PSI) |
❓ Frequently Asked Questions (FAQ)
Q: How do I choose between APC and APCF?
A: Check your equipment’s port. If the port is a hole (female thread), use APC (Male). If the port is a stud (male thread), use APCF (Female).
Q: Do I need sealant tape?
A: For M-Thread and G-Thread (BSP) fittings with O-rings, NO tape is needed. For R-Thread (BSPT) and NPT tapered threads, using PTFE tape or liquid sealant is recommended if pre-applied sealant is not present.
Q: Can these be used for truck air brakes?
A: Yes, they are widely used in auxiliary systems. For primary brake lines, always ensure you are using DOT-compliant PA12 tubing.
📦 Factory Direct Packaging (B2B)
-
Bulk Bags: 50/100 pcs per bag (labeled with Series e.g., “APC 08-02 Male Straight”).
-
Assortment Kits: Available as part of our pneumatic starter kits.
-
OEM Options: Custom thread sizes available upon request.
