📌 Product Overview
The Heart of Air Brake Safety.

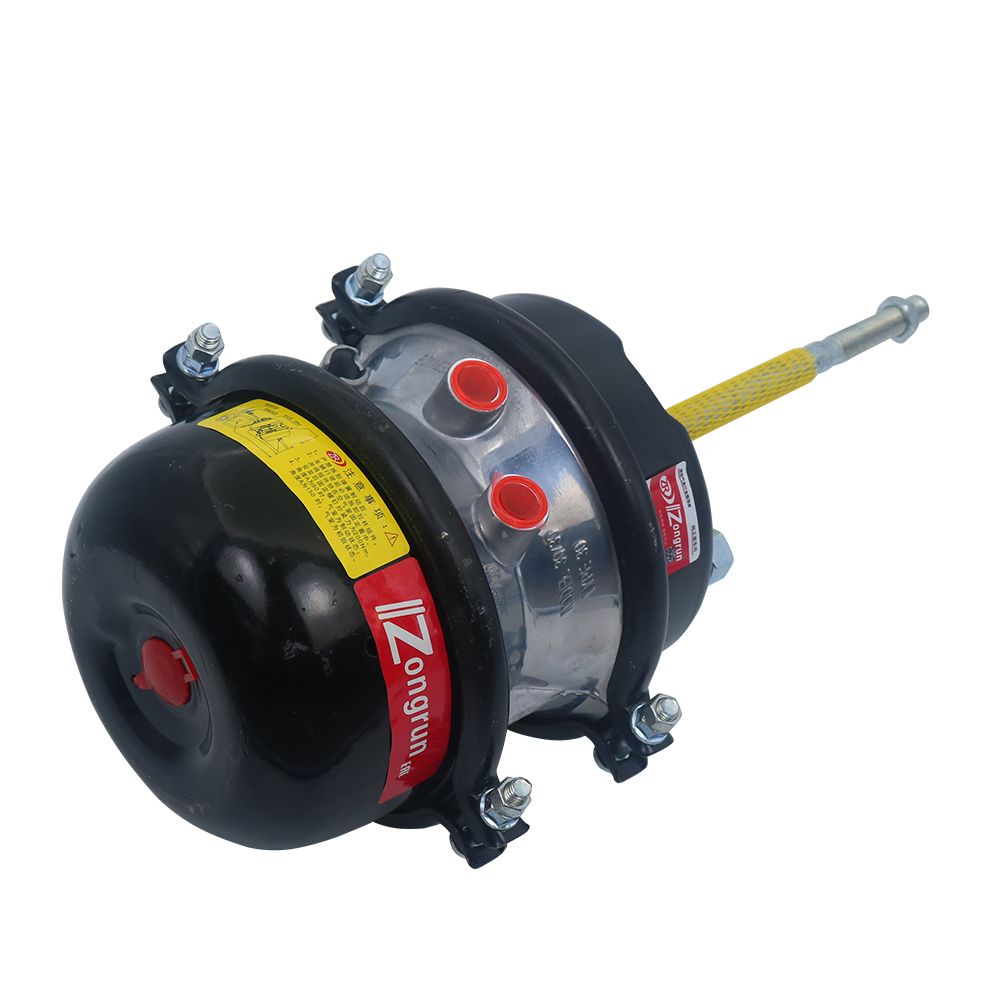

Reliable braking isn’t optional—it’s essential. Victory Technology’s Spring Brake Chamber is a heavy-duty dual-chamber actuator designed to provide both Service Braking (for normal stopping) and Parking/Emergency Braking (fail-safe holding) in one robust unit.
Engineered in our Zhuji Aoke facility, these chambers are built to withstand the harshest road conditions. Featuring a Zinc-Plated or Powder-Coated Steel Housing, they offer superior resistance to road salt and corrosion. Inside, a high-cycle Power Spring ensures that if air pressure is lost, the mechanical spring automatically engages the brakes, providing fail-safe security for trucks, trailers, and buses.1
🔹 Why Choose Victory Spring Brake Chambers?
- ✅ Dual-Chamber Reliability:Combines the Service Brake chamber and the Spring Brake (Parking) chamber into a single, integrated unit.2 It delivers instant response for highway braking and powerful holding force for parking.
- ✅ Industry Standard Compatibility:Available in the most common configurations, including Type 30/30 (Standard & Long Stroke), Type 24/30, and Type 24/24. Designed to fit standard heavy-duty axles on North American and European rigs.
- ✅ Fail-Safe Power Spring:Safety is built-in. The high-tension internal spring is chemically treated for fatigue resistance, ensuring it won’t lose tension over time. It provides immediate mechanical braking power if the air system fails.
- ✅ Weather-Sealed Durability:The housing is crimped and sealed to prevent dirt, moisture, and salt from entering the chamber, protecting the internal diaphragm and push rod from premature wear.
🔸 Technical Specifications
Engineered for DOT Air Brake Systems.
| Feature | Specification |
| Product Type | Spring Brake Chamber (Dual Assembly) |
| Common Models | Type 30/30, Type 24/30, Type 24/24 |
| Stroke Type | Standard Stroke (2.5″) or Long Stroke (3.0″) |
| Housing Material | Zinc-Plated Steel or Powder Coated |
| Diaphragm | High-Strength Reinforced Rubber |
| Ports | 1/4″ NPT or 3/8″ NPT (Standard Threads) |
| Push Rod | Cut-to-Length (Universal 8–12 inches) |
| Temp Range | -40°C to +80°C (-40°F to +176°F) |
🔹 Applications
-
Semi-Trailers: The primary braking actuator for dry vans, flatbeds, and tankers.
-
Heavy Duty Trucks: Rear axle braking for Class 8 tractors and dump trucks.
-
Bus & Coach: Safety-critical braking for passenger transport.
-
Fleet Maintenance: Direct replacement for Haldex, MGM, or Bendix style chambers.
❓ Frequently Asked Questions (FAQ)
Q: What is a Type 30/30 chamber?
A: It refers to the size of the effective area of the diaphragms. A “30/30” has a 30 sq. in. service chamber and a 30 sq. in. parking chamber. It is the most common size for modern trailers.
Q: Does it come “Caged”?
A: Yes. For safety during shipping and installation, the power spring is mechanically compressed (caged) with a caging bolt. Warning: Always read safety instructions before removing the caging bolt.
Q: Is the push rod adjustable?
A: The push rod typically comes in a standard long length (e.g., 8-12 inches) and is designed to be cut to size by the installer to fit the specific slack adjuster setup.
🔶 Factory Direct Packaging (B2B)
Victory Technology offers safe, palletized shipping:
-
Packaging: 2 pcs per Carton (Heavy Duty Box).
-
Pallet: 70–100 pcs per Pallet.
-
Protection: Caging bolts installed for safety.
