The Ultimate Problem Solvers for Pneumatic Systems
In real-world applications, air lines aren’t always uniform. You often need to step down from a main supply line to a smaller actuator, or split airflow into multiple branches with different flow requirements. Victory Technology’s Reducer & Specialty Fittings are engineered to bridge these gaps. They allow technicians to adapt, split, and route air lines efficiently without using multiple bulky couplers.
Explore Our Specialty Configurations:

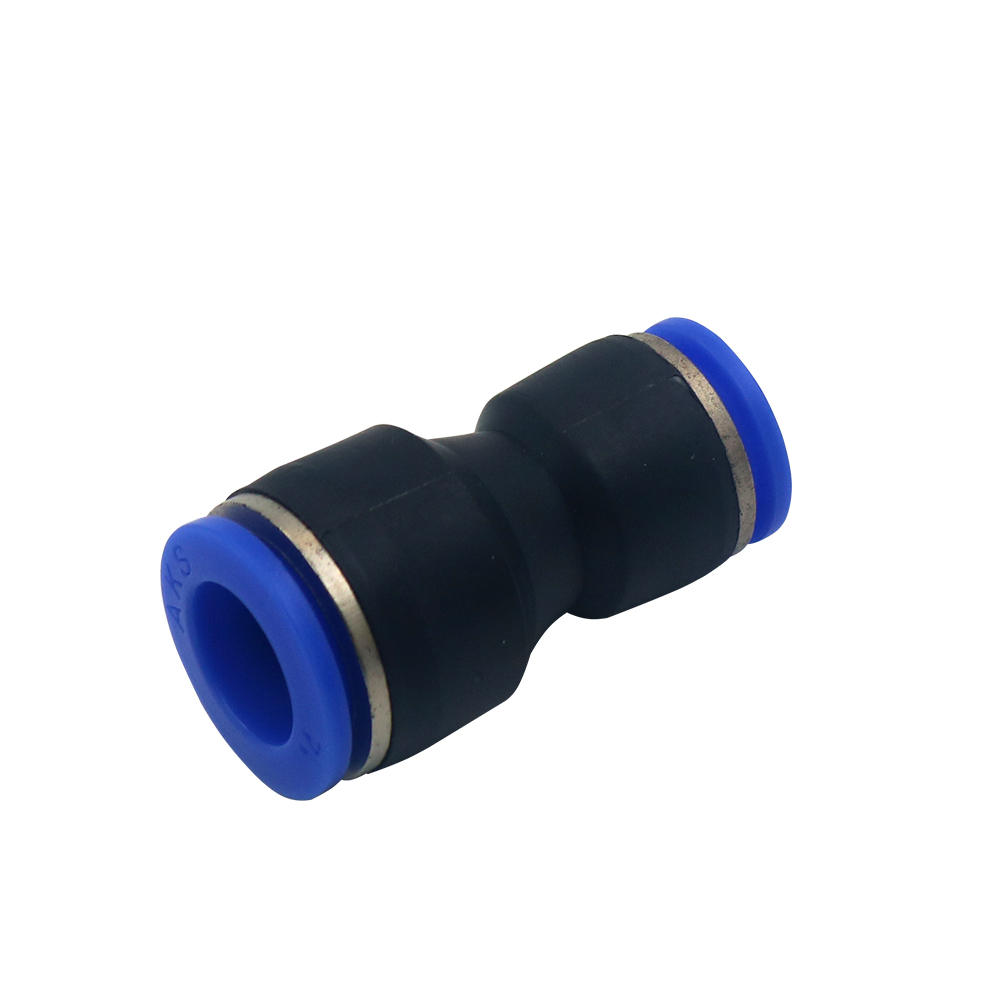

1️⃣ Reducer Straight Fittings (APG / PG Series)
-
Function: The simplest way to transition from a larger tube to a smaller one (Tube → Smaller Tube).
-
Popular Sizes: 12mm → 10mm, 10mm → 8mm, 8mm → 6mm.
-
Application: Perfect for adapting modern pneumatic components to older machinery or extending lines with different tubing.
2️⃣ Reducer Tee & Y Fittings (Splitting & Branching)
-
Reducer Tee: Standard T-shape for branching off to a smaller line (e.g., 10-10-8). Best for manifolds and distribution.
-
Reducer Y (APW Series): Features a streamlined “Y” shape that reduces turbulence. Ideal for high-speed applications where airflow efficiency is critical.
3️⃣ Multi-Port & Cross Connectors
-
Function: Combine 3 or 4 connection points into a single compact unit (e.g., X-Shape Cross Fittings).
-
Benefit: Drastically reduces the “spaghetti” mess of tubing in complex automation panels and truck chassis.
Why Choose Victory Specialty Fittings?
-
Space Saving: Eliminates the need for extra threaded couplers and nipples.
-
Versatile: Compatible with PA12 (Nylon), PU, and PE tubing.
-
Reliable: Features high-retention stainless steel claws for vibration resistance in truck and trailer applications.
🧰 Technical Specifications (Series Overview)
| Feature | Specification |
| Product Series | Reducer / Specialty Push-In |
| Material | PBT Polymer / Nickel-Plated Brass |
| Tubing Compatibility | Metric (4, 6, 8, 10, 12, 16mm) & Imperial |
| Configurations | Straight (PG), Tee (PEG), Y (PW), Cross (PZA) |
| Working Pressure | 0 – 150 PSI (1.0 MPa) |
| Temp Range | -20°C to +80°C |
| Application | Size Conversion, Flow Splitting |
❓ Frequently Asked Questions (FAQ)
Q: When should I use a Reducer Y instead of a Tee?
A: Use a Reducer Y (APW) when you need smoother airflow. The angled design creates less turbulence than the 90° turn in a Tee, making it better for fast-acting cylinders.
Q: Can these be used for air brakes?
A: Yes, they are widely used in auxiliary air circuits and system retrofits on trucks. Ensure you use PA12 Nylon Tubing for any brake-related applications.
Q: Are these fittings reusable?
A: Yes. Like all our push-in fittings, you can disconnect the tube by pressing the release collar and reuse the fitting, provided the internal O-ring is not damaged.
📦 Factory Direct Packaging (B2B)
-
Bulk Bags: 50/100 pcs per bag (labeled with Size, e.g., “Reducer Y 10-8mm”).
-
Assortment Kits: We can create “Maintenance Adapter Kits” containing a mix of popular reducers.
-
OEM Options: Custom colors (Black/Blue button) available for large orders.
