Clean Routing Without the Stress
In tight machinery frames or crowded truck chassis, forcing a straight tube to bend often leads to kinking and restricted airflow. Victory Technology’s Elbow Fittings solve this by providing a rigid 90° turn. Designed for speed and reliability, these fittings allow for quick push-in connections without special tools, simplifying maintenance in the field.
Explore Our Elbow Configurations:

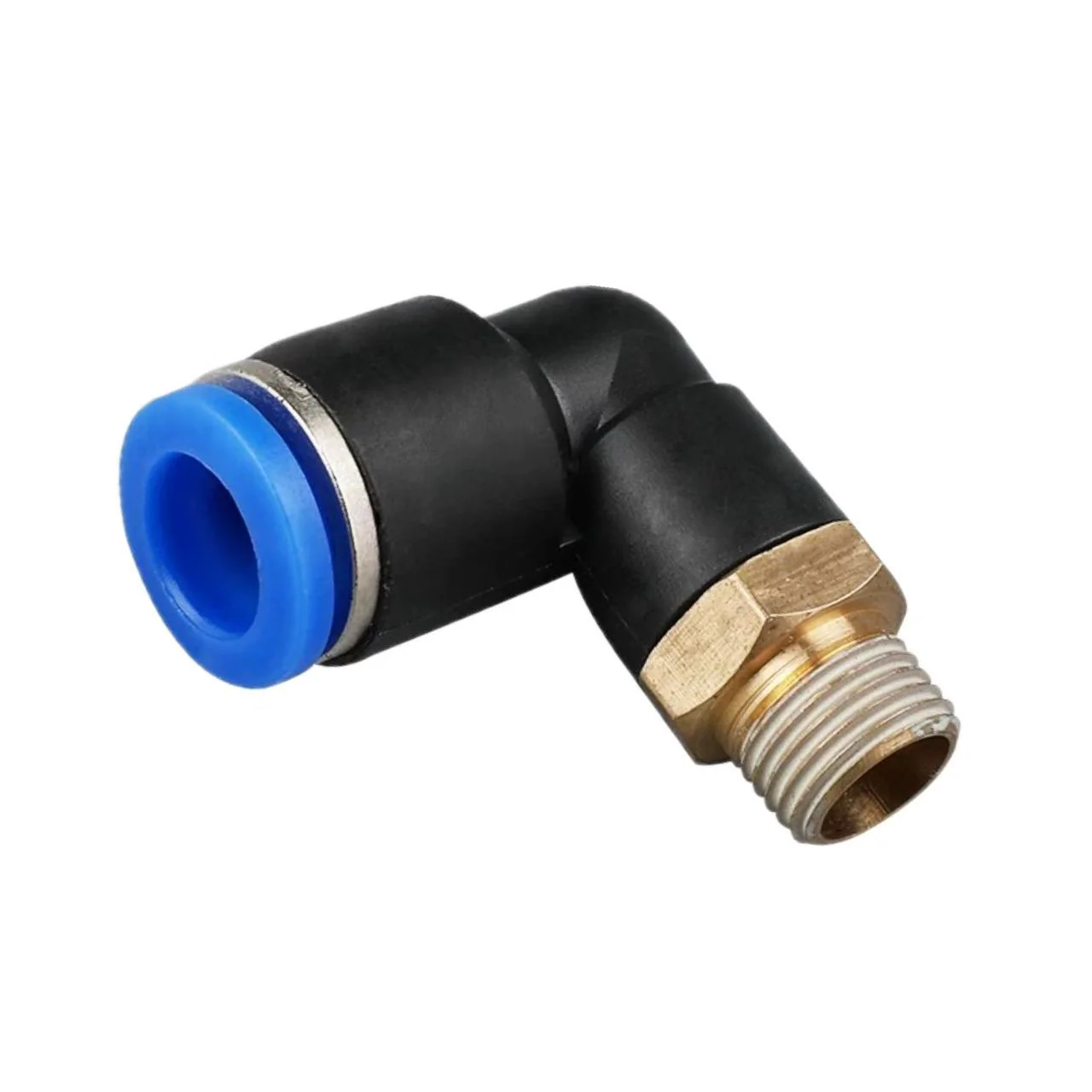

1️⃣ Male Elbow Series (APL / ASL / APH)
-
Type: Tube → Male Threaded Port.
-
Function: The standard 90° connector for cylinders, valves, and manifolds.
-
Feature: Swivel body allows for alignment after tightening.
2️⃣ Female Elbow Series (APLF / ANPL / APV)
-
Type: Tube → Female Threaded Port.
-
Function: Connects tubing to male-threaded pipes or gauges where space is tight.

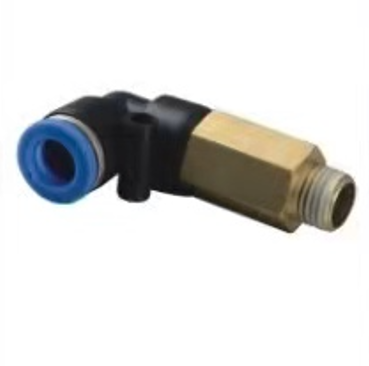

3️⃣ Extended / Long Elbow Series (APLL)
-
Type: Extended Neck Body.
-
Function: Designed to reach deeper ports or provide clearance to route one tube over another fitting.
4️⃣ Inch / Universal Series
-
Type: Imperial Tubing (1/4″, 3/8″, 1/2″) with NPT Threads.
-
Function: Specifically designed for North American truck air brake auxiliary lines and industrial equipment.
Why Choose Victory Elbow Fittings?
-
Space Saving: Minimizes tubing length and clutter by keeping lines close to the chassis.
-
Durable Construction: Made from Brass, Nickel-Plated Brass, or Engineering Plastics to resist corrosion and high pressure.
-
Vibration Resistant: Collet and O-ring designs ensure leak-free sealing even on heavy-duty vehicles.
🧰 Technical Specifications (Series Overview)
| Feature | Specification |
| Product Series | APL (Male), APLF (Female), APLL (Long) |
| Connection Type | 90° Elbow Push-In |
| Tubing Compatibility | Nylon, PU, PE (Metric & Inch) |
| Thread Standards | Metric, BSP, NPT |
| Material | Brass / Nickel-Plated / Polymer |
| Application | Tight Routing, Corner Connections |
❓ Frequently Asked Questions (FAQ)
Q: How do I choose between Male and Female elbows?
A: Use a Male Elbow (APL) if your equipment port has female threads. Use a Female Elbow (APLF) if the port is a male thread.
Q: Are these suitable for truck air brakes?
A: Yes, when used with DOT-approved tubing and correct threads, they are designed for harsh, vibration-prone environments.
Q: Can I reuse these fittings?
A: Yes. The push-in design allows tubing to be removed and reinserted multiple times.
Q: Do I need Teflon tape?
A: For fittings with O-rings, no tape is needed. For tapered threads like NPT, using PTFE tape or sealant is standard practice.
📦 Factory Direct Packaging (B2B)
-
Bulk Bags: 50/100 pcs per bag (labeled with Series e.g., “APL-08-02 Male Elbow”).
-
Assortment Kits: Available as part of our pneumatic maintenance kits.
-
OEM Options: Custom body colors available.
🚀 Get a Factory Price Quote Now
Need to clean up your air line routing?
Fill out the form below for our full Elbow Fittings catalog.
