📌 Product Overview
The Perfect Turn for Tight Spaces.
In pneumatic systems, routing a straight tube into a side port often causes the hose to kink, restricting airflow and causing premature failure. Victory Technology’s Elbow Brass Fittings provide a rigid 90-degree turn, ensuring smooth flow and professional routing even in the tightest machinery frames or truck chassis.
Manufactured in our Zhuji Aoke facility from high-quality Corrosion-Resistant Brass, these fittings are designed for durability. Our popular Swivel Male Elbows feature a rotatable body, allowing you to tighten the thread first and then rotate the tube outlet to the exact angle needed for perfect alignment.1
🔹 Why Choose Victory Elbow Fittings?
- ✅ Kink-Free 90° Routing:
Save space and save your hoses. By providing a hard 90-degree turn right at the port, these fittings prevent flexible tubing from bending too sharply, ensuring maximum airflow and extending the life of PA/PU tubing.
- ✅ 360° Swivel Positioning:
Installation made easy. Most of our Male Elbows feature a Swivel Body. This means you can torque the threaded end down fully, and then rotate the elbow fitting to point the tube in any direction you need.
- ✅ Rugged Brass Construction:
Built for the road. Unlike plastic elbows that can snap under side-load pressure, our solid brass elbows withstand vibration, impact, and corrosion.2 They are ideal for exposed mounting on truck axles and chassis.
- ✅ Universal Thread Support:
We cover all standards. Available in Metric, NPT, and BSP (G/R) threads to fit everything from American truck air tanks to European automation cylinders.
🔸 Available Configurations

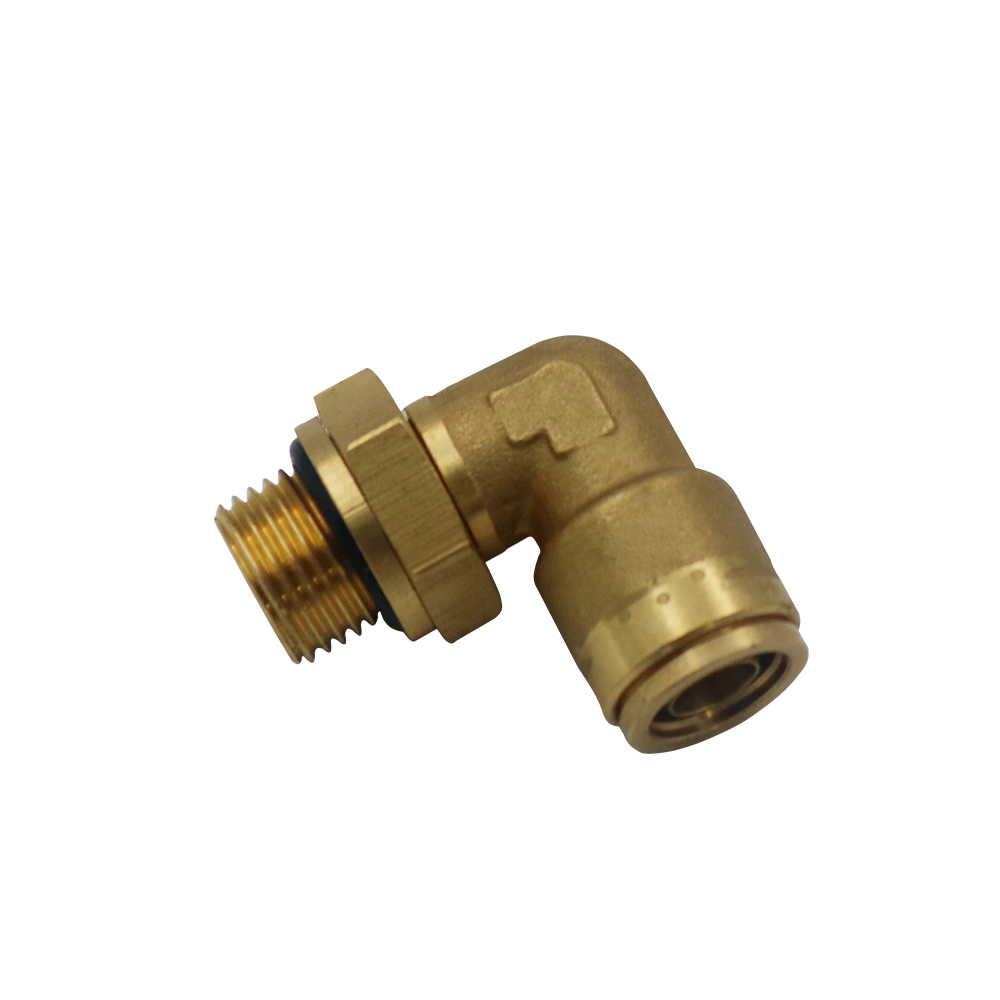

1. Male Elbow (Swivel)
-
Design: 90° turn with a male thread.
-
Use: The most common type. Used on cylinders, valves, and manifolds.
2. Female Elbow
-
Design: 90° turn with a female thread.
-
Use: connecting a tube to a male-threaded pipe or gauge.
3. Long / Extended Elbow
-
Design: An elbow with an elongated neck.
-
Use: Perfect for recessed ports or when you need to route one tube over another fitting.
🔸 Technical Specifications
Precision Machined for Leak-Free Corners.
| Feature | Specification |
| Product Type | Elbow Fitting (90 Degree) |
| Material | Brass (Natural or Nickel-Plated) |
| Available Types | Male Elbow, Female Elbow, Long Elbow |
| Thread Standards | NPT, BSPP (G), BSPT (R), Metric |
| Tubing Compatibility | PA (Nylon), PU, PE, Rubber Hose |
| Working Pressure | Up to 150 PSI (Standard Pneumatic) |
| Feature | 360° Swivel Body (on select models) |
🔹 Applications
-
Pneumatic Cylinders: Connecting air lines to actuator ports without sticking out.
-
Truck Chassis: Routing air brake lines around frame rails and axles.
-
Manifolds: Creating compact valve islands with clean tubing layouts.
-
Lubrication: Directing oil lines in tight machine enclosures.
📦 Factory Direct Packaging (B2B)
Victory Technology offers organized packaging for easy binning:
-
Bulk Packaging: 50–100 pcs per bag.
-
Labeling: Clear identification (e.g., “Male Elbow 8mm x 1/4 NPT”).
-
Protection: Sealed bags to maintain brass finish.
🚀 Get a Factory Price Quote Now
Need to clean up your air line routing?
Fill out the form below for our full catalog of Elbows.
