📌 Product Overview
The “Total Replacement” Solution for Fleets.
Don’t waste time sourcing individual parts. Victory Technology’s 3-Piece Long-Tail Connection Kit provides everything you need to completely upgrade your tractor-trailer connection in one box.
This premium kit features three independent heavy-duty coils: Service Air (Blue), Emergency Air (Red), and ABS Power (Green). Unlike basic replacement hoses, this set comes fully loaded with Aluminum Extension Handles, Gladhands, and a heavy-duty Tracker Bar Spring.
Manufactured in our Zhuji Aoke facility, every hose is equipped with our signature “Long-Tail” Steel Spring Guards. These extended guards provide superior kink protection at the fittings, ensuring your fleet stays DOT-compliant and road-ready for the long haul.
🔹 Why Choose the Victory Complete Long-Tail Kit?
- ✅ All-in-One Installation Box:We engineered this kit for efficiency. It includes the air lines, the electrical cable, plus the Gladhands, Extension Handles, and Suspension Hardware. It is the perfect SKU for parts counters and fleet maintenance depots—no missing parts, no delays.
- ✅ Signature “Long-Tail” Protection:Standard springs are often too short to prevent kinking. Our Extended Steel Spring Guards support the tubing further down the line, acting as a spine to prevent “fitting fatigue” and hose collapse near the handle connection.
- ✅ 3-Piece Independent System:Three separate coils offer better routing flexibility than wrapped bundles. You can position the electrical cable centrally and the air lines to the sides, reducing tangling during tight turns.
- ✅ Indestructible Aluminum Handles:Plastic grips crack in winter. Our kit includes color-coded Anodized Aluminum Handles (Red & Blue) that provide excellent leverage for coupling/uncoupling gladhands without slipping.
🔸 Technical Specifications
Manufactured to North American DOT Standards.
| Feature | Specification |
| Set Configuration | 3-Piece Independent Set (Red, Blue, Green) |
| Air Hoses | Nylon/PU Hybrid Coils – SAE J844 / DOT FMVSS 106 |
| Electrical Cable | 7-Way ABS Green Cable – SAE J560 (100% Copper) |
| Protection | Long-Tail Steel Spring Guards (Anti-Kink) |
| Handles | Anodized Aluminum (Red & Blue, Knurled Grip) |
| Gladhands | Die-Cast Zinc Alloy (Red & Blue) |
| Temp Rating | -40°F to +200°F (-40°C to +93°C) |

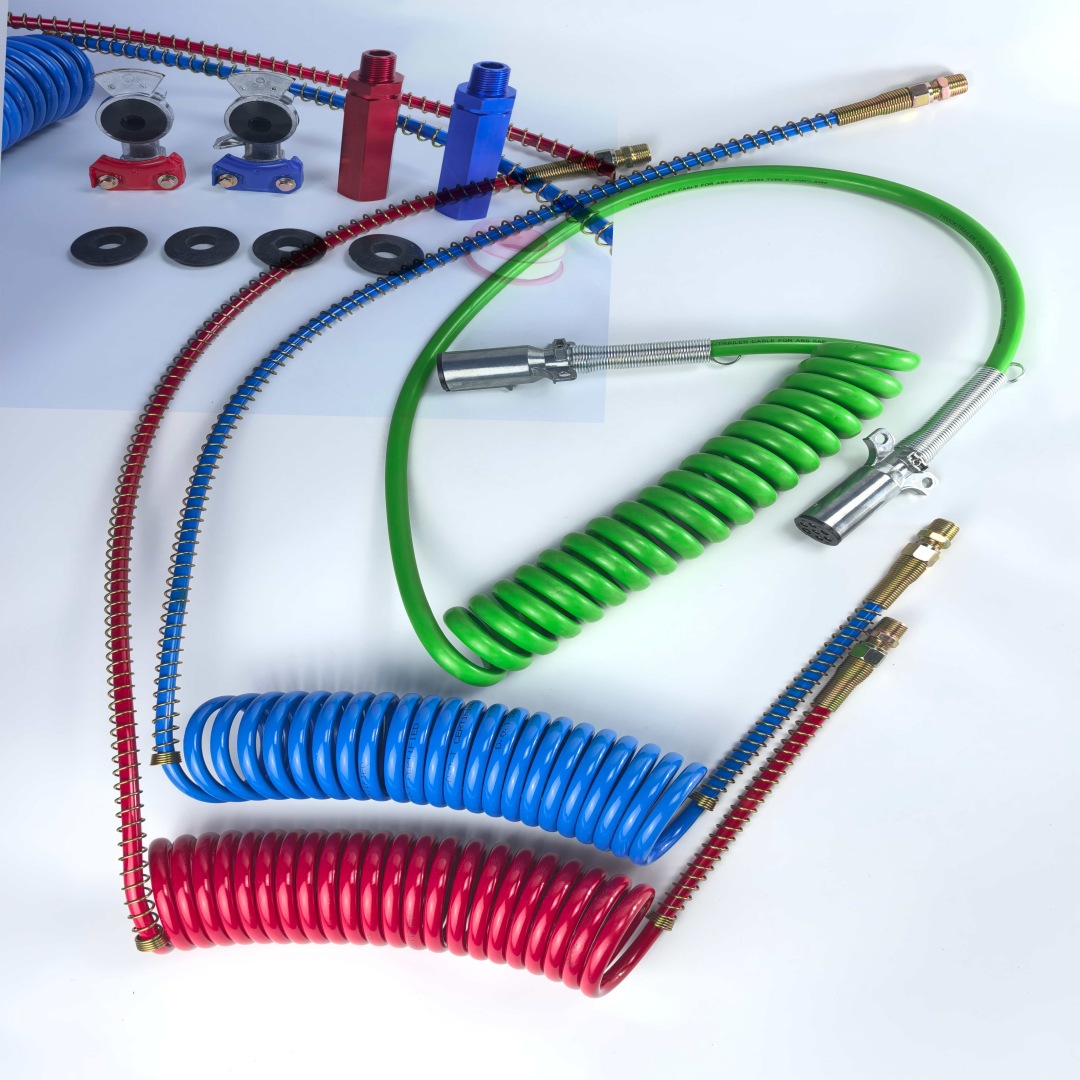

🔹 What’s Included in the Box (Complete 7-Point Set)
You get exactly what you see:
-
1× Blue Service Air Coil (with Long-Tail Springs)
-
1× Red Emergency Air Coil (with Long-Tail Springs)
-
1× Green 7-Way ABS Electrical Coil (with Long-Tail Springs)
-
2× Aluminum Extension Handles (Red & Blue – Pre-installed)
-
2× Gladhands (Red & Blue – with Seals & Mounting Bolts)
-
1× Suspension Kit:
-
25″ Heavy-Duty Tracker Bar Spring
-
Snap Clip / Carabiner
-
-
4× Extra Rubber Seals (Spare Parts)
❓ Frequently Asked Questions (FAQ)
Q: Are the air lines DOT approved?
A: Yes. The Red and Blue coils meet DOT FMVSS 106 requirements for safe highway use in the USA and Canada.
Q: Is this a wrapped “3-in-1” or separate lines?
A: This is a 3-Piece Set. The three lines are separate (independent), giving you more freedom in how you route them on the back of the truck compared to a spiral-wrapped bundle.
Q: Why use “Long-Tail” springs?
A: The “Long Tail” design extends the metal spring guard to cover more of the hose. This prevents the hose from bending sharply at the fitting, which is the #1 cause of air leaks.
🔶 Factory Direct Service
Victory Technology supports global distributors:
-
Custom Branding: We can laser engrave your logo on the aluminum handles or gladhands.
-
Retail Packaging: Available in colorful display boxes or clamshells for retail shelves.
